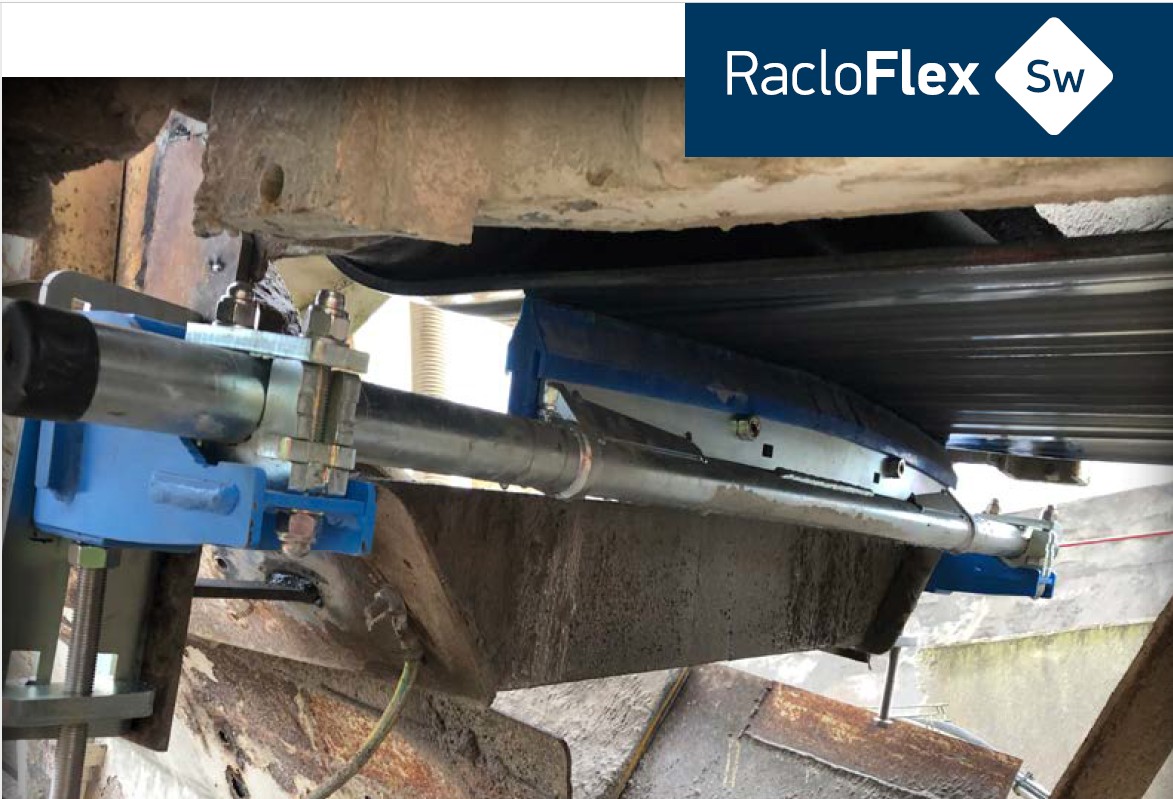

RacloFlex™ Sw
A unique and innovative scraper, The only one with wear compensation
An ingenious scraping system that adapts to your belt. The RacloFlex™ SW has a blade with two inserts that transfer the lateral external pressures to an increased central pressure. Therefore, the scraper adapts automatically and compensates for its wear continuously. This guarantees maximum efficiency and lifetime, with minimum maintenance.
- Longer service life
- Anti-clogging design
- Minimal maintenance
- Quick-opening bearing
- Compatible with 2 flow directions
- Simple and compact
- Galvanized metal parts
- Very high cleaning performance
- Curved blade with clip without adjustment
- Very few screws
- Extendable pressure rod
- Solid mechanism for adequate weight
- Graduated damper, toothed, with non-return

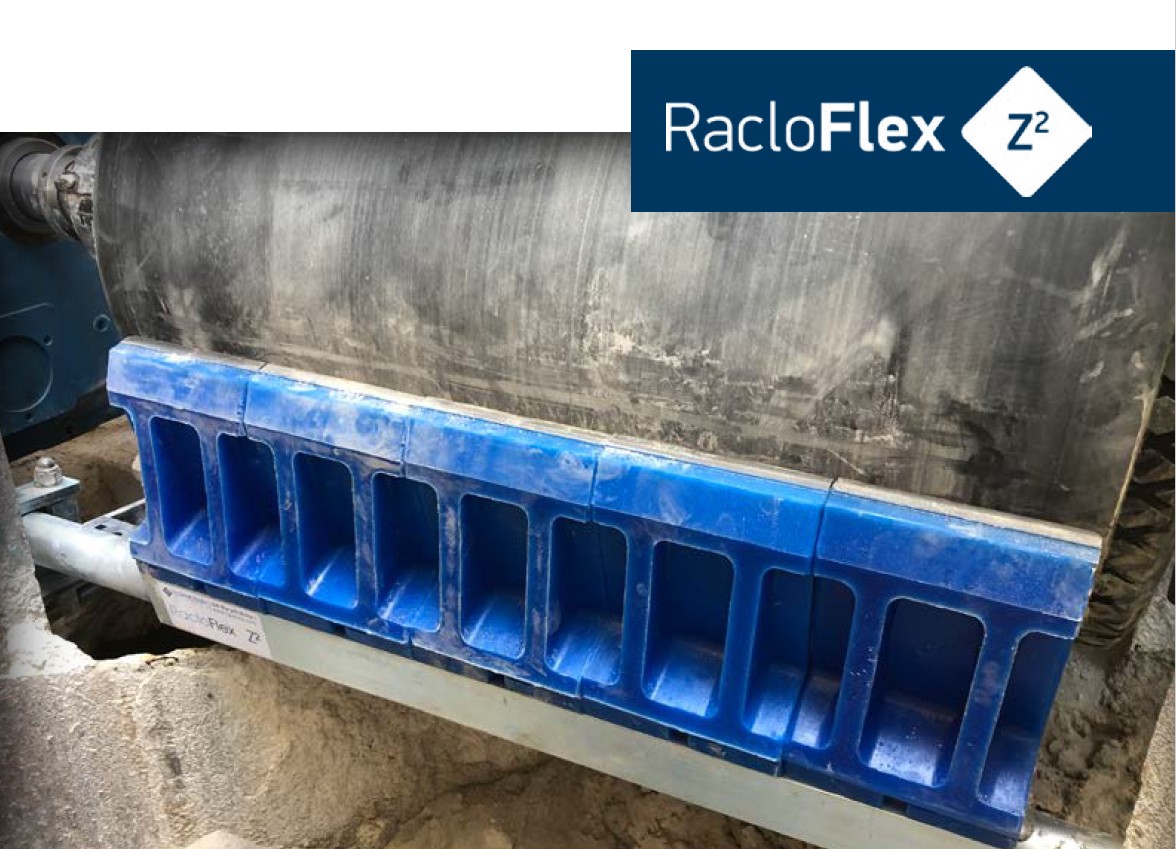

RacloFlex™ Z2
A multi-blade primary scraper unique on the market. A system compatible with SUPER-SCREW®*, ISC™ & FIX'N GO®
An ingenious conveyor belt cleaning system that fits most conveyor structures. Each anti-clogging profile blade is equipped with internal 2 springs and is quickly connected on a pivot that allows slight rotation and easy change without adjustment. The multi-blades of the RacloFlex™ Z² HD are automatically adjusted to the belt.
- Economical and adaptable
- High-performance cleaning
- Galvanized metal parts
- Grooved bearing with quick-release system
- Works in both directions
- Equipped with PE-UHMW deflectors
- Replace only worn blades
- Various blades available
- Extendable pressure bar
- Adjustable on concave or convex belt
- Pressurization system with integrated spring
in each blade- Automatic blade adjustment for central wear compensation

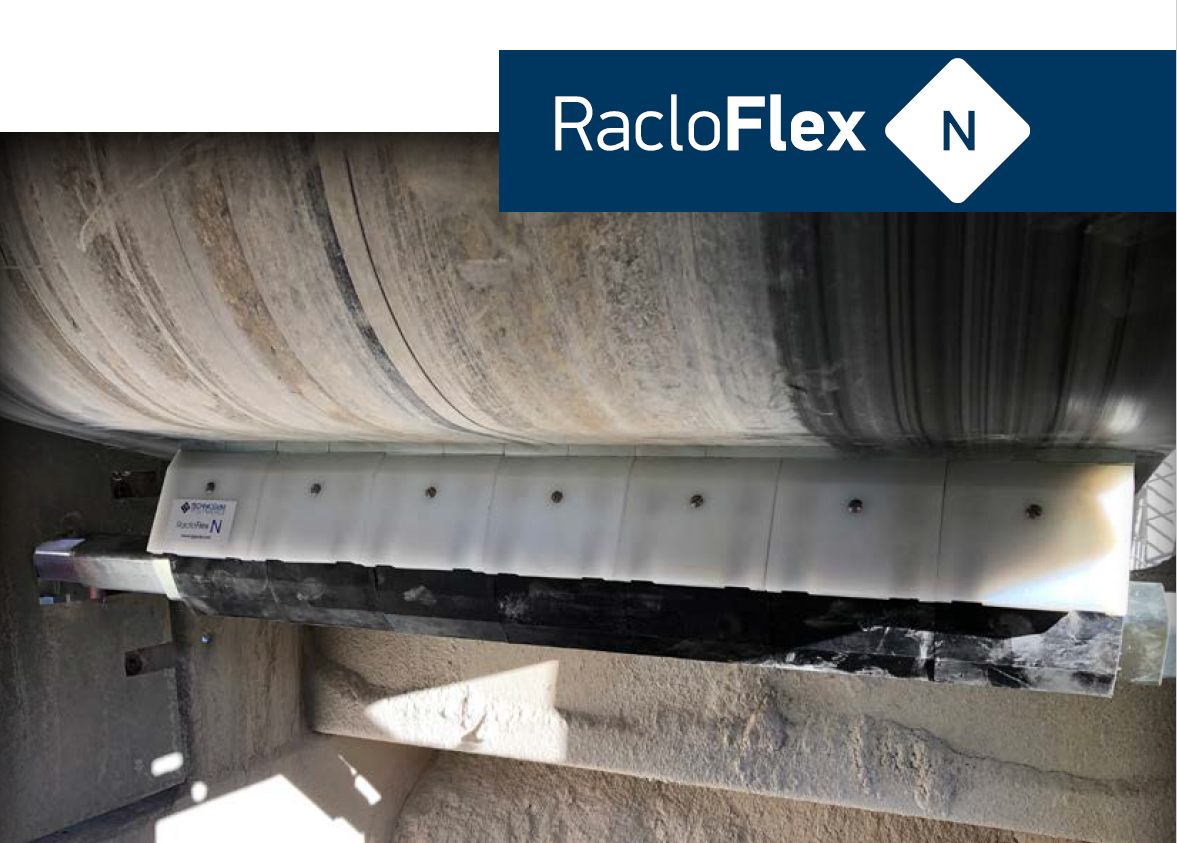

RacloFlex™ N
Secondary multi-blade scraper, economical and versatile
Unlike simple single-blade scrapers, RacloFlex N consists of each blade supported by a damper block that can be independently adapted to the shape of the belt and compensates for faster wear of certain blades. True to its original patented design from 1985 while constantly benefiting from the latest improvements and innovations, RacloFlex N is a safe and rational option for cleaning conveyor belts
- Economical and versatile
- High-performance cleaning
- Galvanized metal parts
- Quick-opening gear bearing
- Works with 2 flow directions
- Equipped with PE-UHMW deflector
- Double hardness rubber technology
- Replace only used blades
- Many blade types available
- Retractable pressure bar
- Adaptable to concave or convex belts
- Efficiency proven worldwide since 1985
- Stronger than most equivalent models
- Blade alignment with center wear compensation
RacloFlex™ DP
Diagonal Plough Segment Belt Cleaner with Automatic Pressure for 2-Way Belts
The sliding support allows up and down movement of the entire structure so the cleaner maintains constant contact with the belt regardless of the level of blade wear. The RacloFlex DP blade is made of a high-strength polyurethane module that is height adjustable. rotated 180° (both sides) and replaced independently at low cost.
- Compact design
- Easy installation
- Economical design
- Easy adjustment
- Quick replacement
- Reduced scraping pressure
- Simplified modular replacement
- Automatic retraction safety
- Effective cleaning of many products

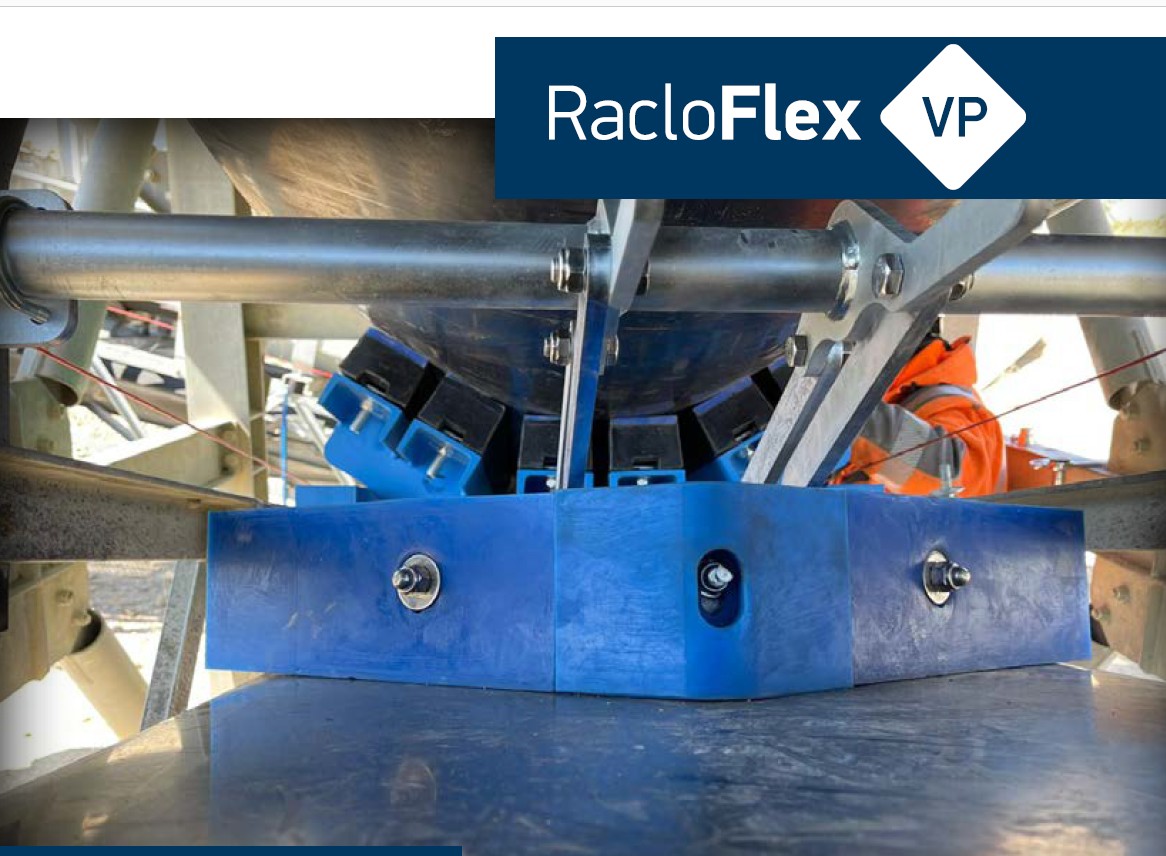

RacloFlex™ VP
Pilot segment scraper with automatic pressure
An articulated system that adapts to dangerous situations. The articulated parallelogram support keeps permanent contact with the belt no matter the wear level of the blade and makes it possible to raise it in case of danger. Compatible with SUPER-SCREW®*, ISC™, and FIX'N GO®*.
100 % compatible with SUPER-SCREW®*, ISC™and FIX'N GO®*
Easy installation
Easy setting
Fast change
Space saving
Innovating design
Reduced scraping pressure
Easy modules change
Security by automatic removal
Compatible with different products
Angle adjustment for pressure distribution of the blade between the top and sides

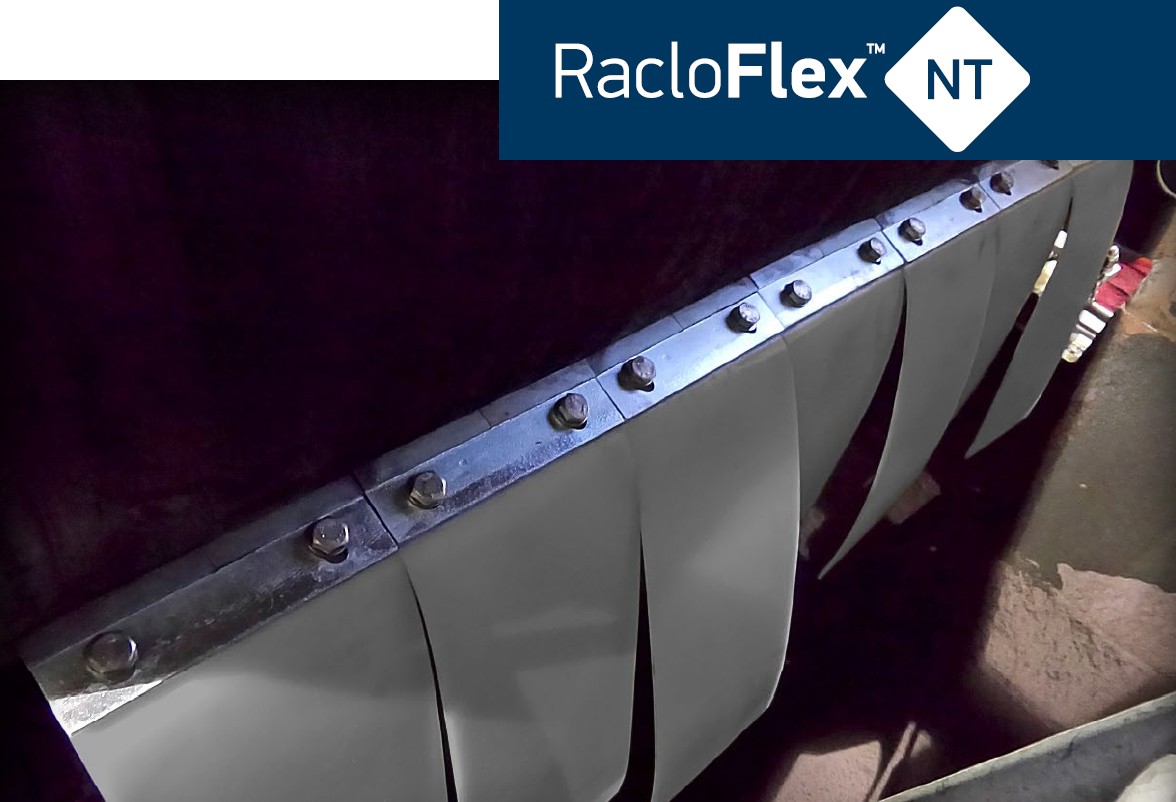

RacloFlex™ NT
An innovation that prevents wear and tear
Ingenious conveyor belt cleaning equipment that compensates for wear. Unlike the simple single-blade scrapers, the RacloFlex™ NT is composed of blades each supported by a shock absorber block which can be adjusted independently to shape the belt and compensate to the faster wear of certain blades. Faithful to its original patented design of 1985 whilst also constantly benefiting from the latest improvements and innovations.
Economic and polyvalent
High performance cleaning
Galvanised metal parts
Toothed bearing with fast opening
Works with two directions of flow
Supplied with stainless steel deflector
Dual hardness rubber technology
Adaptable on concave or convex belts
Lots of types of blades availableRealignement of the blades by central wear compensation
Stronger than most of the equivalent models
Only the used blades are to be replaced
Retractable pressurization rod
Efficiency globally proven since 1985
